FlowCon PICV & Control Valves

Expert Power Saudi Arabia supplies FlowCon International products, specialists in energy-efficient dynamic balancing solutions for HVAC cooling and heating systems and inventors of the PICV concept. FlowCon offers serviceable insert valves across nine types in various sizes, delivering pressure-independent control for precise flow regulation, flexibility, and proven performance in demanding applications. Their innovations include the compact FlowCon PRIMO series with electronic pressure-reacting technology, remote BACnet flow setting, accurate pitot measurement, and high capacity at low ΔP.

FlowCon's portfolio features pressure independent balancing and control valves (PICV), differential pressure controllers, double regulating valves, and dynamic balancing valves, all designed for primary side applications, data centers, airports, and beyond. Committed to sustainability and aligned with UN SDGs 7, 11, and 13, FlowCon reduces CO2 footprints per the Paris Agreement through energy-efficient HVAC solutions, continuous development, and EPDs for PICV actuators, ensuring lower operating costs and easy commissioning worldwide.

With Expert Power Saudi Arabia's technical expertise and FlowCon's pioneering engineering, we provide complete dynamic balancing solutions tailored to your HVAC requirements. Our team supports you from system design and selection through commissioning, integration with BACnet/Modbus controls, and ongoing optimization for maximum energy efficiency and reliability.

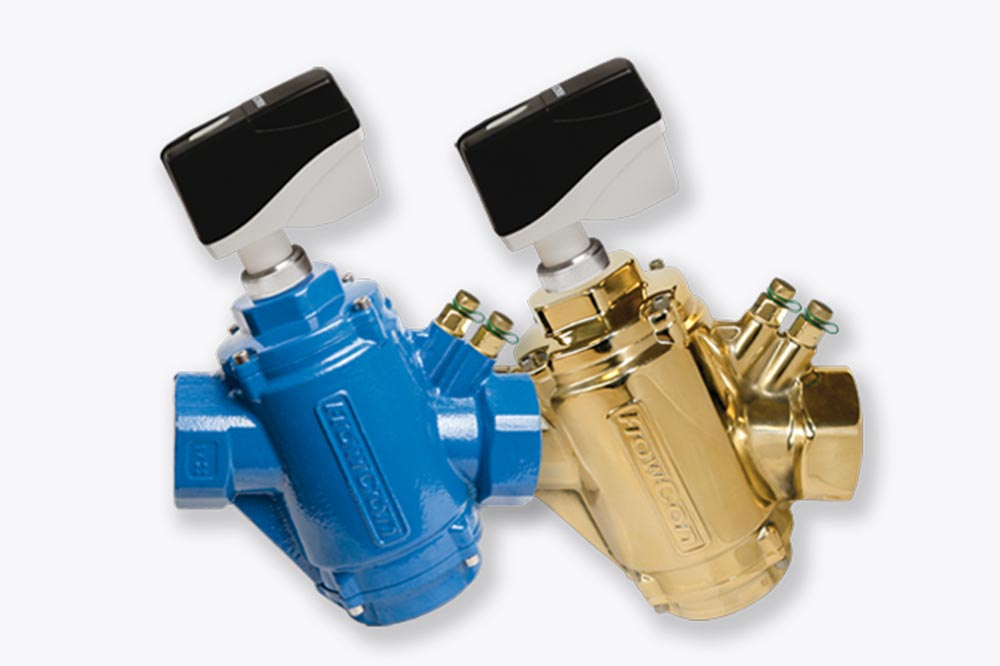

PICV (Pressure Independent Balancing and Control Valves)

FlowCon Green series PICVs (Green.0/1/1HF/2) deliver total authority pressure-independent balancing and control for DN15-32 (1/2"-1 1/4") valves, featuring adjustable stepless maximum flow settings across 41 limits. These DZR brass or brass-housed valves support multiple actuator options including electrical modulating (0-10V, BACnet/Modbus), thermal ON/OFF, and failsafe configurations for precise HVAC flow management.

Product description
Technical Specifications:

• Sizes: Green.0/1/1HF: 20 mm insert (DN15/20/25); Green.2: 40 mm insert (DN25/32)
• ΔP range: 16-800 kPaD (2.3-116 psid)
• Flow rate: 0.0103-1.29 l/sec (0.163-20.4 GPM)
• Pressure rating: PN25
• Connections: Fixed female-by-female threaded
• Features: Optional pressure/temperature plugs, serviceable inserts

Actuator Options:

• FN/FNP/FNR/FNJ: Electrical modulating/floating/2-position (BACnet/Modbus available)
• FT: Thermal 0-10V or ON/OFF with standard failsafe

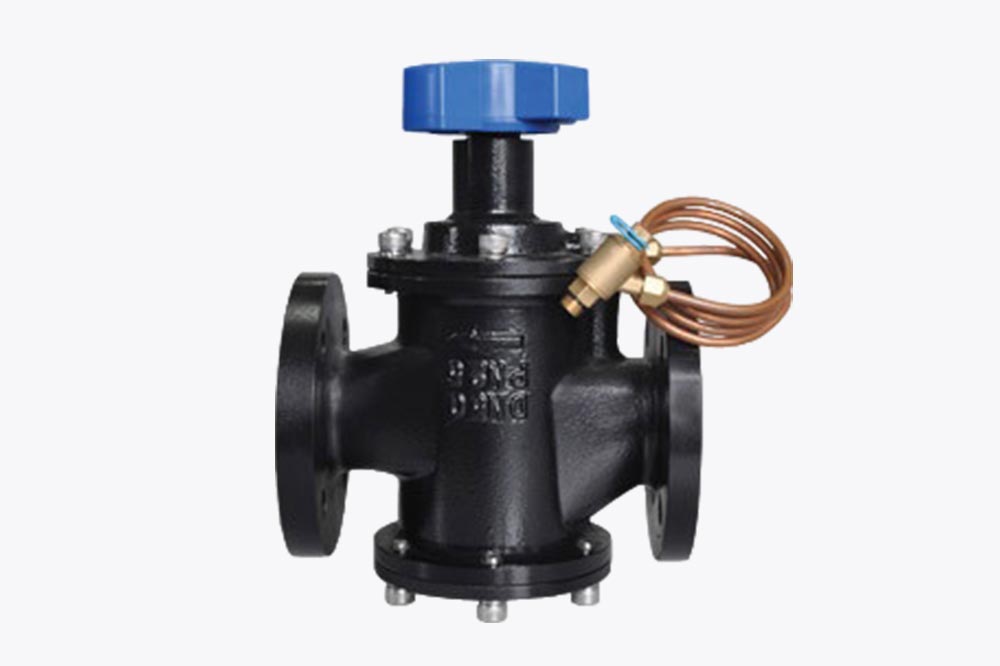

Differential Pressure Controller

The FlowCon FYC adjustable differential pressure controller (DPCV) for DN65-450 (2 1/2"-18") features memory stop, stepless ΔpC setting, and ductile iron housing with standard pressure/temperature plugs. Paired with FlowCon DRJT partner valve, it maintains stable system pressure up to 350 kPaD max operational ΔP for large-scale HVAC applications.

Product description
Sizes: DN65-450 (2 1/2"-18")
ΔpC range: DN65-250: 40-160 kPaD (5.8-23 psid); DN300-450: 60-140 kPaD (8.7-20.3 psid)
Connections: Double flange
Max operational ΔP: 350 kPaD (50 psid)
Partner valve: FlowCon DRJT
Features: Memory stop for repeatable settings, serviceable design

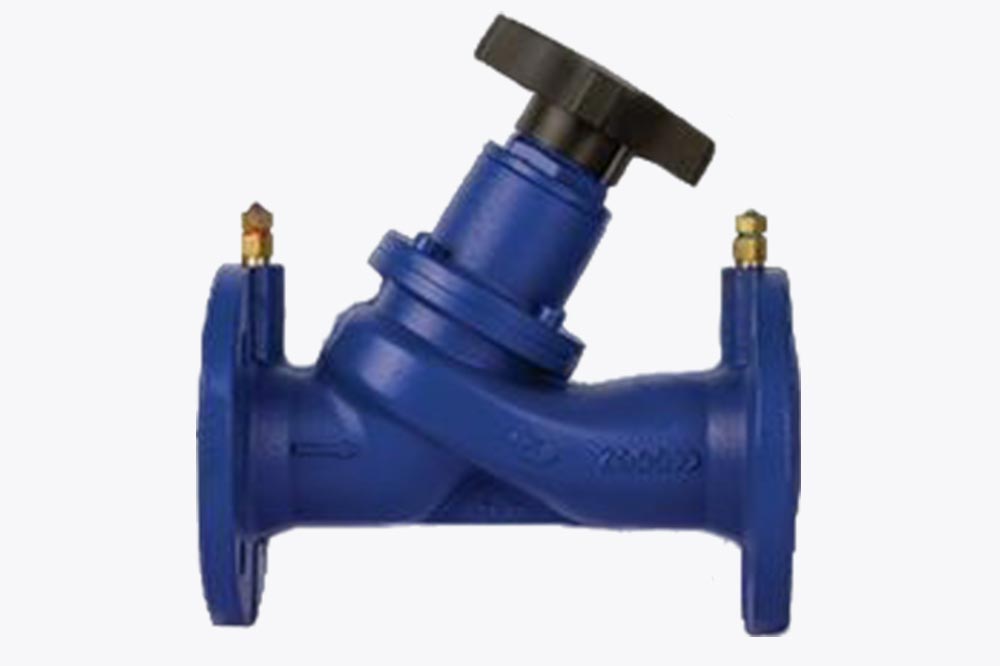

Double Regulating Valve

FlowCon Partner Globe (DN65-300 / 2 1/2"-12") serves as a variable orifice double regulating partner valve for FlowCon PIM™-DP DPCV systems, offering lockable/tamper-proof stepless flow setting with cast iron housing and double flanged connections. Designed for HVAC precision, it meets EN12266-1 shut-off leakage standards for reliable commissioning and maintenance.

Product description
Performance Range:

• Sizes: DN65-300 (2 1/2"-12")
• Flow rate: 4500-1,500,000 l/hr (19.8-6600 GPM)
• Connections: Double flanged
• Features: Lockable adjustment, low leakage shut-off
• Application: Partner valve for DPCV systems
• Housing: Cast iron for durability

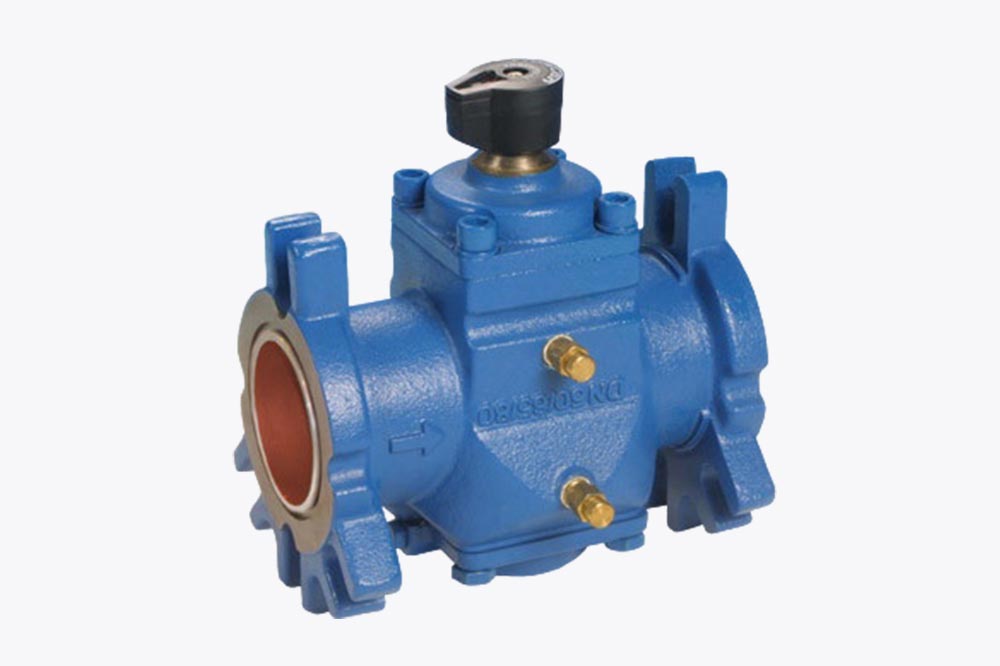

Dynamic Balancing Valve

FlowCon SH externally adjustable dynamic balancing valve (DN50-250 / 2"-10") offers 51+ maximum flow rate limits with ductile iron housing, universal flange connections, and standard pressure/temperature plugs. This solution ensures precise flow control across wide ΔP ranges for heating systems, maintaining system balance under varying conditions.

Product description
Key Specifications:

• Sizes: DN50-250 (2"-10")
• ΔP range: 30-800 kPaD (4.4-116 psid)
• Flow rate: 1.48-76.8 l/sec (23.4-1220 GPM)
• Connections: Universal flange
• Adjustability: Minimum 51 stepless maximum flow settings
• Features: External adjustment, pressure/temperature measurement ports
